Haus Rohrbach Replacement Sling Chair Details

Mike Wentink 509-679-5986

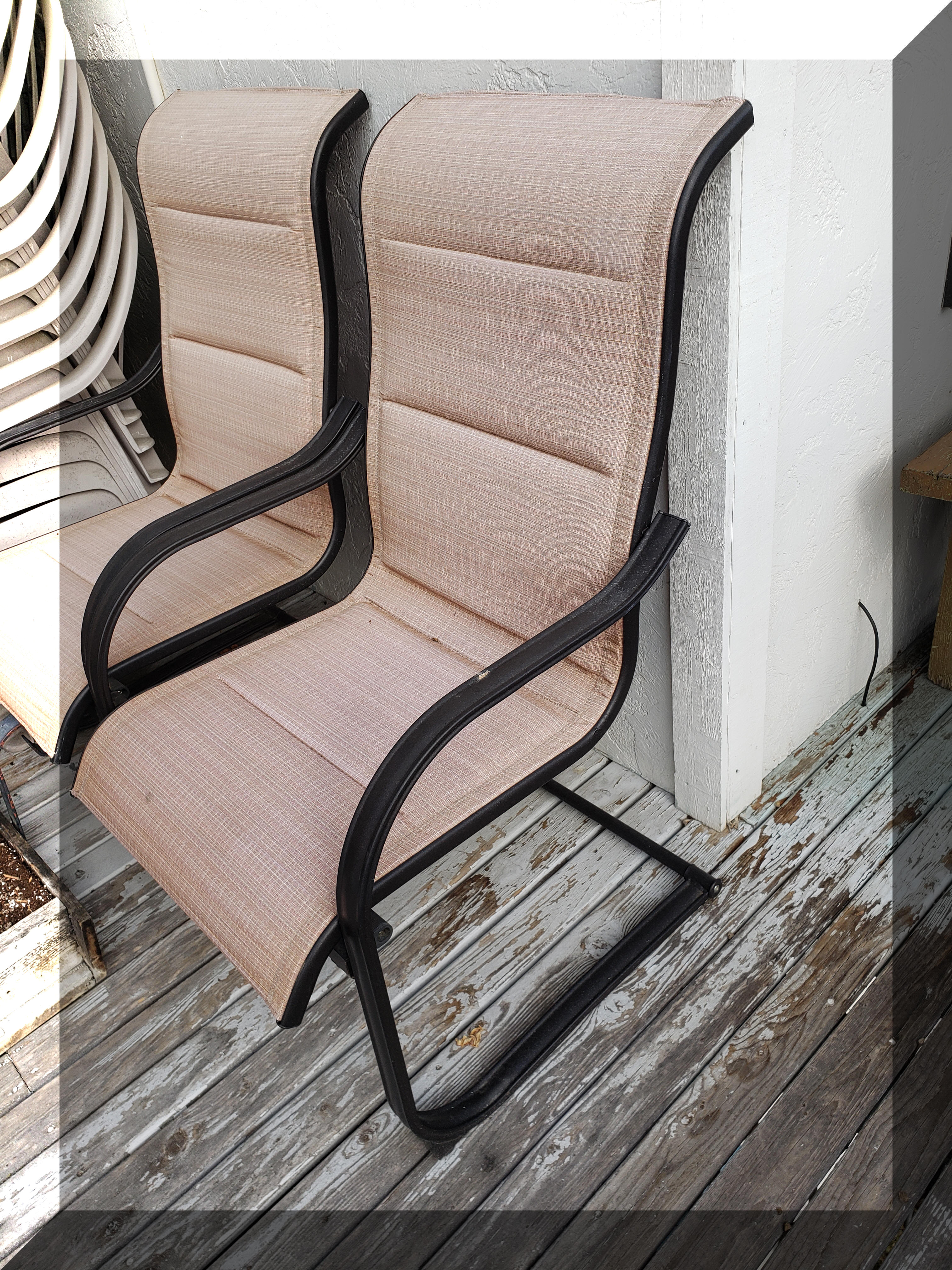

Restored Chair.

Replacement Sling Installed

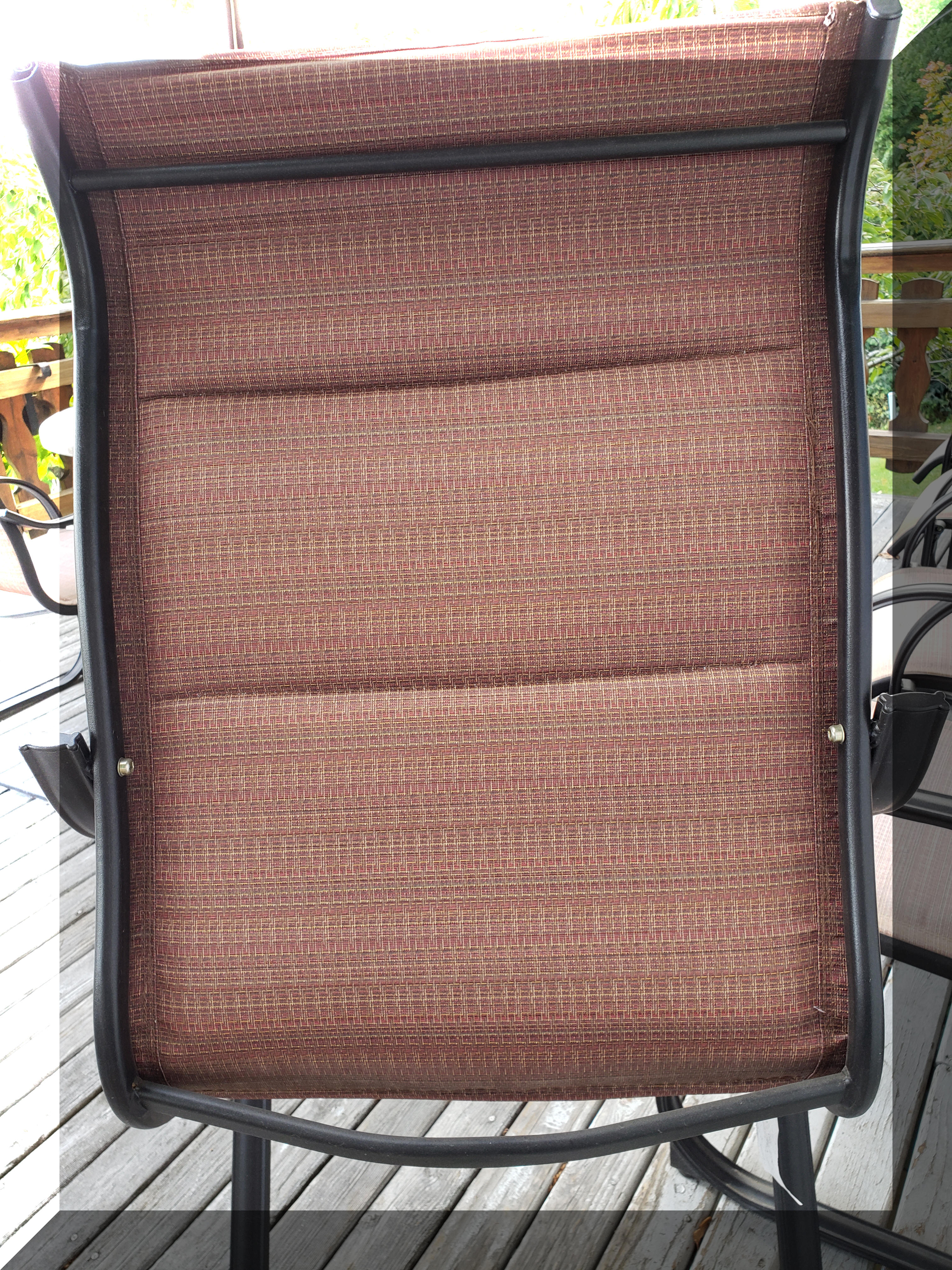

back view

Sling 48 1/5" long x 19 7/8 " wide

Back frame bolts to arms



upper view

lower brace

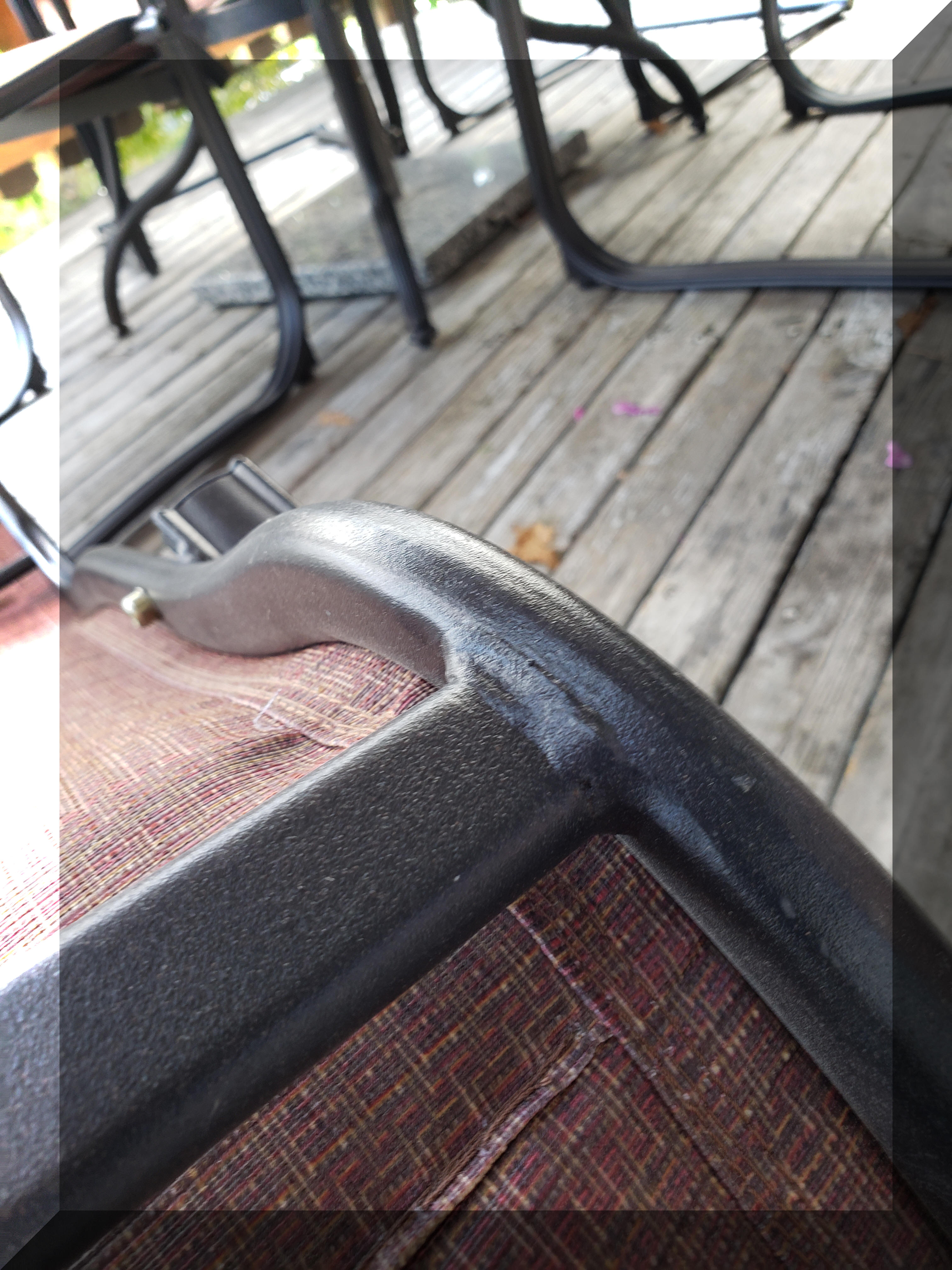

Welded lower back bar

Also shows back rail bolted to side arm

sling channel

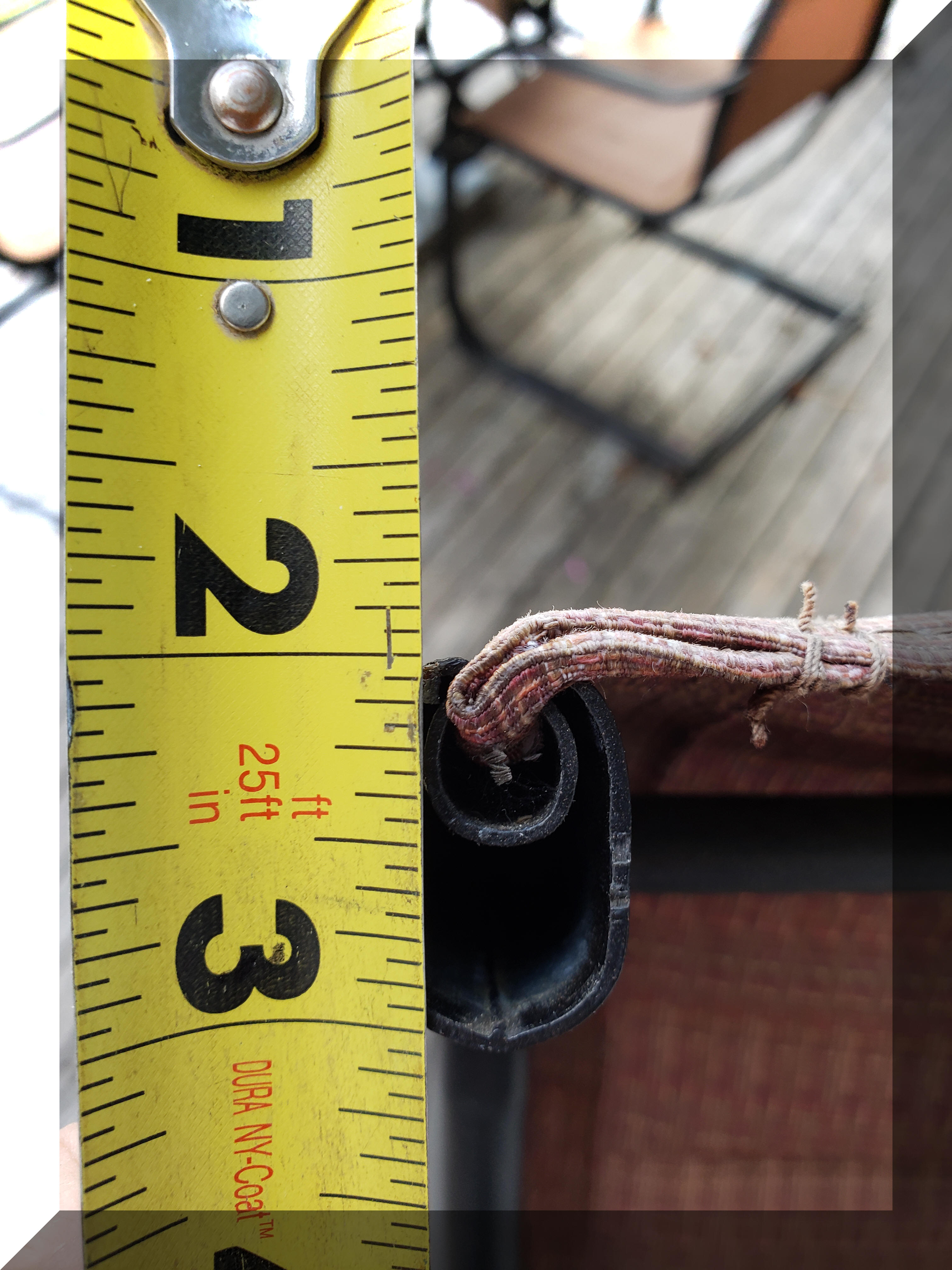

Top inside spline channel height

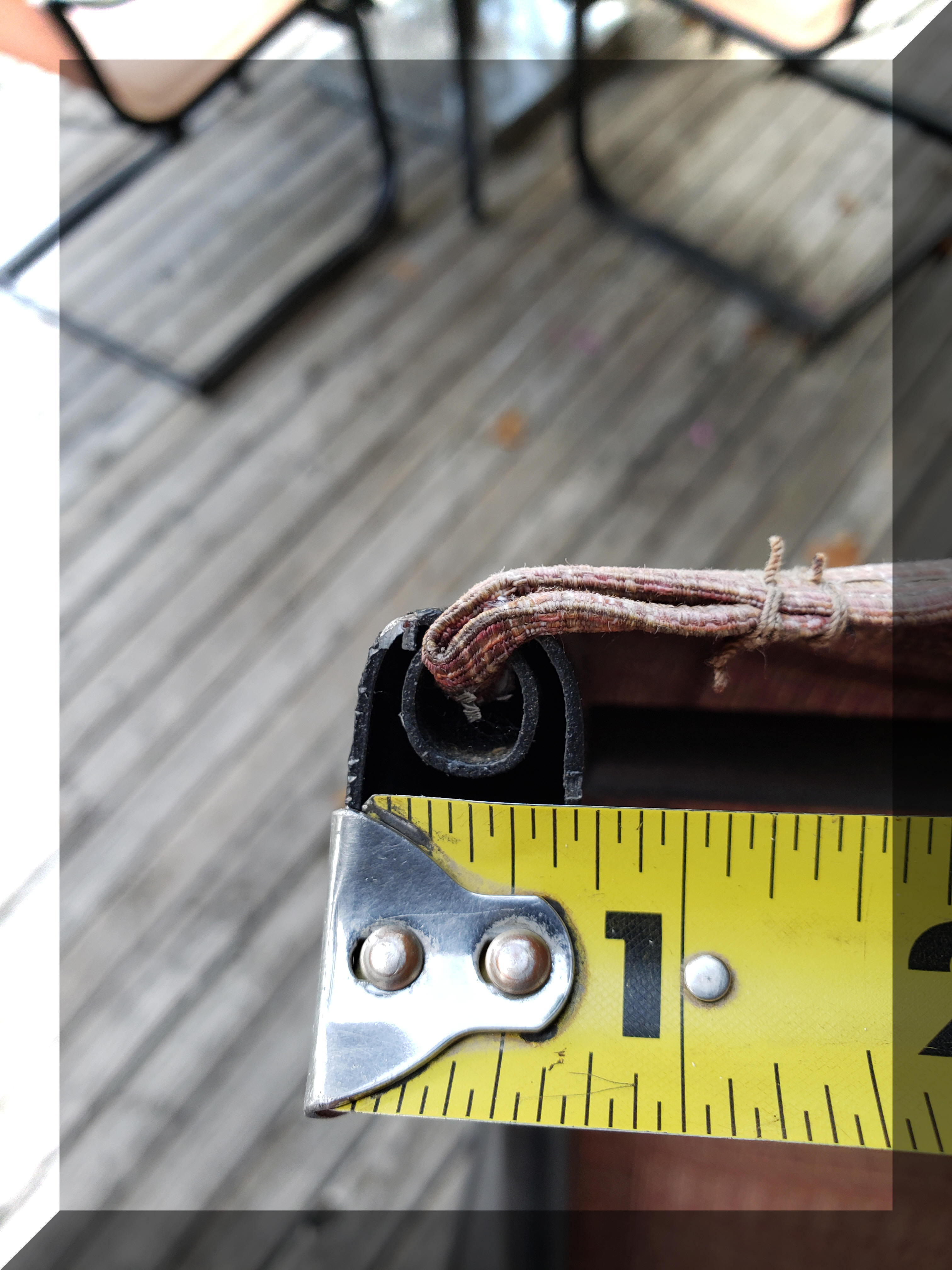

Top inside spline channel width

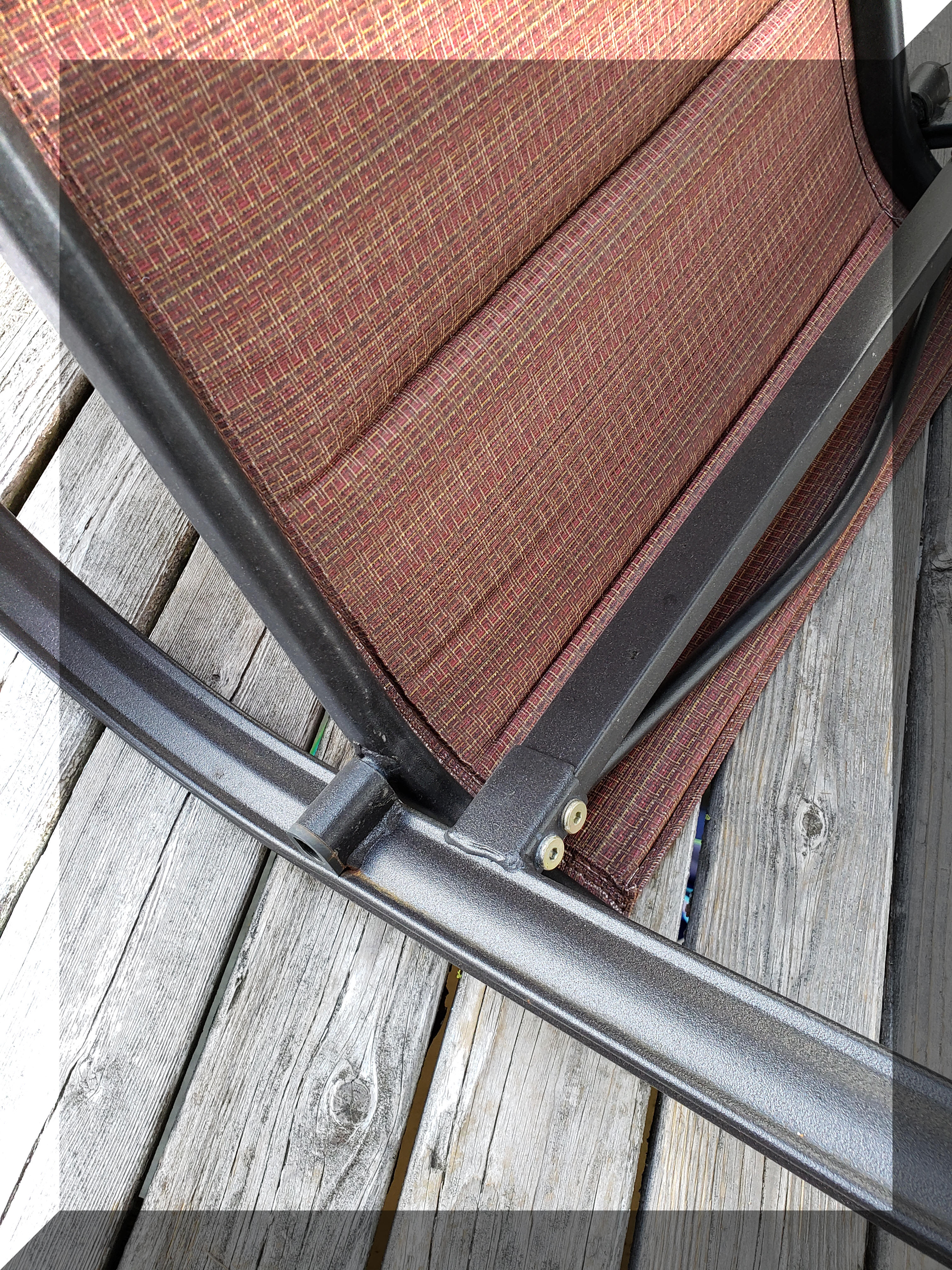

Both sides of bottom brace are bolted

Front lower leg bolts into sling seat frame

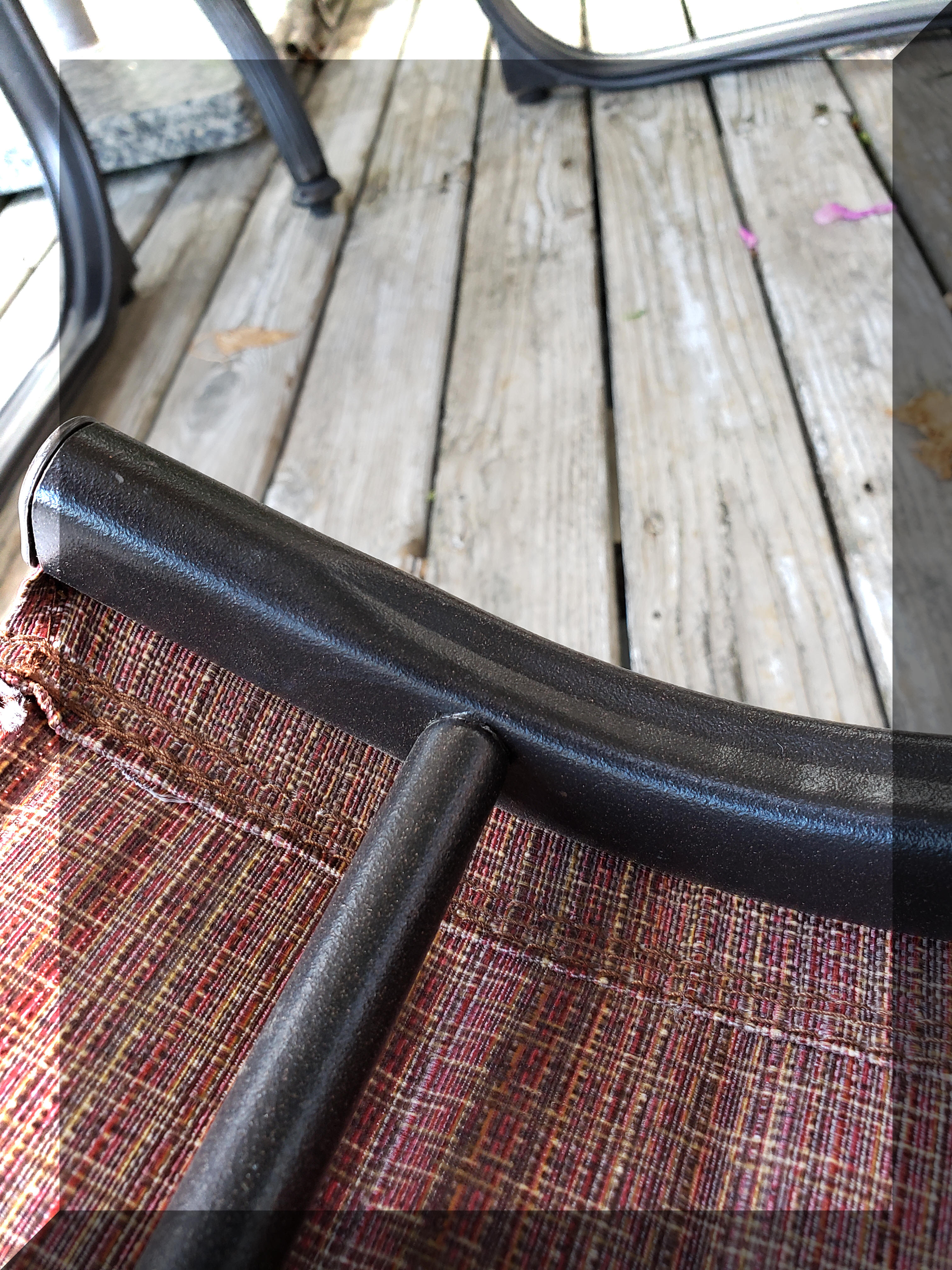

upper back spreader bar

Top back spreader bar - not welded from what it looks like - I don't see plastic pins
